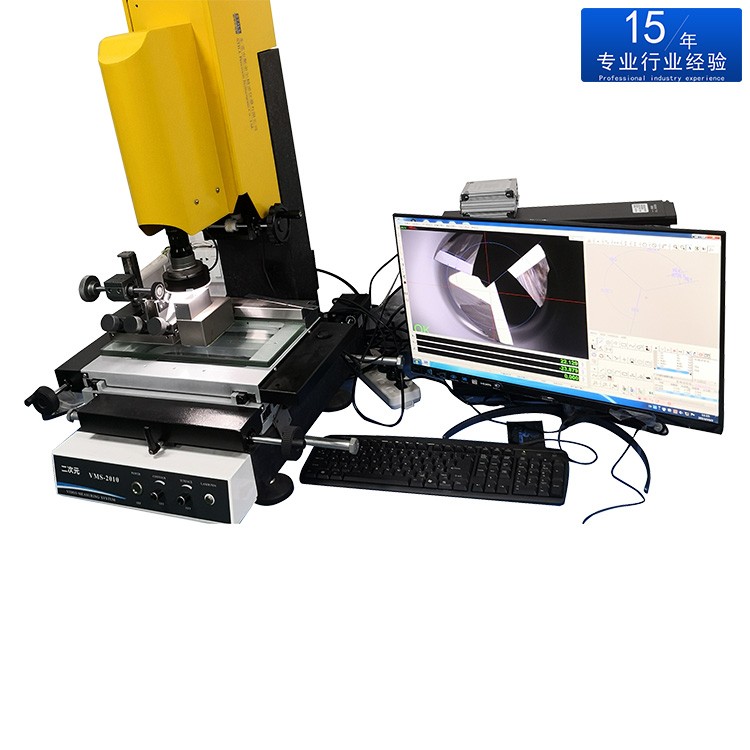

高清刀具影像儀，采用高清230萬像素高速相機， 高靈敏度二分之一， 同時標配了0.58-7.5大變倍鏡頭，比傳統影像儀增加了更大的倍率調節，適用于從微鉆到標準銑刀的檢測，影像視場更加寬；另外，可選配三分之二超高清500萬像素高速相機，同時選配軟件 美國m3智能軟件，更加完善軟件的算法，測量精度達到0.001mm， 可以高精度測量球刀，R刀；可選配棱鏡組，輕松完成端刃及側刃各項參數測量，同時接受非標刀具特殊定制開發及測量，包括工裝夾具設計.
HD Imager for Cutter,used with HD 2.3 megapixel high speed camera, high sensitivity 1/2, and large chip sensor, standard configured with 0.58-7.5 large zoom lens which has larger magnification adjustment than traditional imager, it is suitable for inspection from micro drilling to standard milling cutter, which has wider field of view. Moreover；In addition, Options HD 5 megapixel high speed camera and Selection the software cooperates with m3 intelligent software of the United States, improve the algorithm of the software, measurement accuracy reaches 0.001mm, it can measure ball knife and R knife with high precision. It can be equipped with Optional prism set, which can easily measure parameters of end edge and side edge; also can be special customized for design and measurement of non-standard tools, including fixture design.
高清刀具影像儀參數
Parameter of HD Imager for Cutter
行程可選：200X100，300X200, 工作距離84 Distance adjustable (mm)：200*100，300*200, working distance 84 |
攝像系統：標配1/2英寸高清CCD 230萬像素 可選配 2/3英寸高清晰度CCD 500萬像素 Camera Shooting System：1/2 inch HD camera, 2.3megapixel Options：2/3 inch HD camera, 5 megapixel |
光學鏡頭：12.5X高景深卡位鏡頭，光學倍率0.58：7.5 X Optical Lens：12.5X High depth of field holder lens, Optical ratio 0.58：7.5 X |
影像區放大倍率：16.5～208X，選配：20～254X Image area magnification: 16.5～208X，Options：20～254X |
可選配附加物鏡物理參數(1/2CCD) Optional Additional Lens Parameters(1/2CCD)：
選配物鏡 (X) Optional Lens | 光學倍率(×) Optical ratio | 影像放大倍率(×) Image magnification | 視野 View Field |
0.25 | 0.15～1.87 | 5～65.6 | 7.2～41.6 |
0.5 | 0.29～3.75 | 10～131 | 3.6～20.8 |
0.75(標配) | 0.43～5.62 | 15～196.6 | 2.4～18 |
1.0 | 0.58～7.5 | 20.3-262.5 | 1.8～10.4 |
1.5 | 0.87～11.25 | 30～393 | 1.2～7.0 |
2.0 | 1.16～15.0 | 40～525 | 0.9～5.2 |
三刃銑刀端面螺旋角影像圖
Image of spiral Angle on end face of three-edge milling cutter
三刃銑刀峰角，前角，后角，影像圖
Three - edge milling cutter peak Angle, front Angle, back Angle, Image
非常適合直接測量鉆頭、絲錐、鉸刀、銑刀、刀片、鋸片等刀具和精密零件的某些特殊的角度如前角、后角、螺旋角、主偏角、負偏角、齒距、芯厚、橫刃、橫刃角、齒隙角、導程、螺距、中徑、軸向和徑向測量等，不需要計算即可得到需要的數據。
It is very suitable to measure the drill tap, reamer, milling cutter, blade, saw blade, other cutters and some special angles of precision parts, such as front Angle, rear Angle, spiral Angle, main deviation Angle, negative deviation Angle, tooth pitch, core thickness, transverse edge, transverse edge, tooth gap, Angle, lead Angle, axial and radial measurement of pitch, etc. We can obtain the required data and no need calculation.
高清刀具影像儀
其配備了業界功能最強大的MS3D測量軟件，高清影像自動尋邊功能，可對點、線、圓等元素實現精準測量，并具有強大的報表輸出功能，特別適用于種類多、小批量的產品測量，廣泛應用于連接器、IC芯片、刀具、皮帶輪等行業。
儀器特點：
精密的傳動裝備設計，實現快速移動。
立柱和底座采用高精度的花崗巖結構、穩定可靠。
配備多功能測量、滿足不同的測量需求。
可導入DXF文件進行快速檢測。
測量數據可導入Word、Excel、AutoCAD。
圖文并茂的報表輸出功能、輕松輸出檢測結果。
三軸精密交叉滾子導軌、保證機器精度及使用壽命。
高清晰度鏡頭和高分辨率CCD、實現產品高清晰度測量。
業界先進的卡位鏡頭、輕松實現倍率切換。
Tool Image Measuring Instrument:
It is equipped with the most powerful MS3D measurement software in the industry, automatic edge-finding function of high-definition image, accurate measurement of point, line, circle and other elements, and has powerful report output function. It is especially suitable for a variety of small batch product measurement, and widely used in connectors, IC chips, cutters, pulleys and other industries.
Instrument features:
Precision transmission equipment design to achieve rapid movement.
The pillar and the base adopt high precision granite structure and are stable and reliable.
Equipped with multi-functional measurement to meet different measurement needs.
DXF files can be imported for fast detection.
Measurement data can be imported into Word, Excel and AutoCAD.
The report output function is full of pictures and texts, and the test results can be easily output.
Three-axis precision cross roller guide rail ensures machine accuracy and service life.
High-definition lens and high-resolution CCD, high-definition measurement of products.
The industry's advanced card lens, easy to achieve rate switching.
二、測量軟件介紹
軟件操作介面：
軟件主要功能簡介：
1、自動測量功能：鼠標自動找直線、點選圓、框選圓區域自動圓、自動圓弧
2、手動CNC：在有夾具的情況下面可以進行半自動測量
3、輔助對焦：幫助找到最清晰時候的Z位置（輔助調焦提高測量精度）
4、圖片輸出：測量結果可以圖片的格式輸出（相當于數碼相機功能）
5、形位公差：圓度，直線度，平行度，垂直度，同心度
6、設置公差：可設置產品的實際尺寸超出范圍，超出則以紅色背景警示
7、輪廓跟蹤：通過軟件自動計算出工件的輪廓并顯示出來 （清晰顯示測量位置）
8、矢量繪圖功能：圖元字體可以無級的放大縮小
9、標注功能:半徑標注,直徑標注,角度標注,線性標注,對齊標注,文字標注,坐標標注
10、SPC分析：可以計算CA、CP、CPK、DRL、DRR、DR、MAX、MIN、AVG、RANGE、STD，并可以繪出X-R圖，散點圖，折線圖，柱狀圖等
二、Introduction of Measurement Software
Software operation interface:
Introduction to the main functions of the software:
1. Automatic measurement function: mouse automatically find straight line, point circle, frame circle area automatic circle, automatic arc.
2. Manual CNC: Semi-automatic measurement with fixture
3. Auxiliary Focusing: Help to find the Z position at the clearest time (Auxiliary Focusing Improves Measurement Accuracy)
4. Picture output: Measurement results can be output in the format of pictures (equivalent to the function of digital cameras)
5. Form and position tolerances: roundness, straightness, parallelism, perpendicularity, concentricity
6. Setting tolerance: The actual size of the product can be set beyond the range, and the product can be warned with a red background if it exceeds the range.
7. Contour tracking: automatically calculate the contour of the workpiece by software and display it (clearly show the measuring position)
8. Vector Drawing Function: Primitive fonts can be steplessly enlarged and reduced.
9. Marking Functions: Radius Marking, Diameter Marking, Angle Marking, Linear Marking, Alignment Marking, Text Marking, Coordinate Marking
10. SPC analysis: CA, CP, CPK, DRL, DRR, DR, MAX, MIN, AVG, RANGE, STD can be calculated, and X-R maps, scatter maps, polygons, columnar maps can be drawn.
