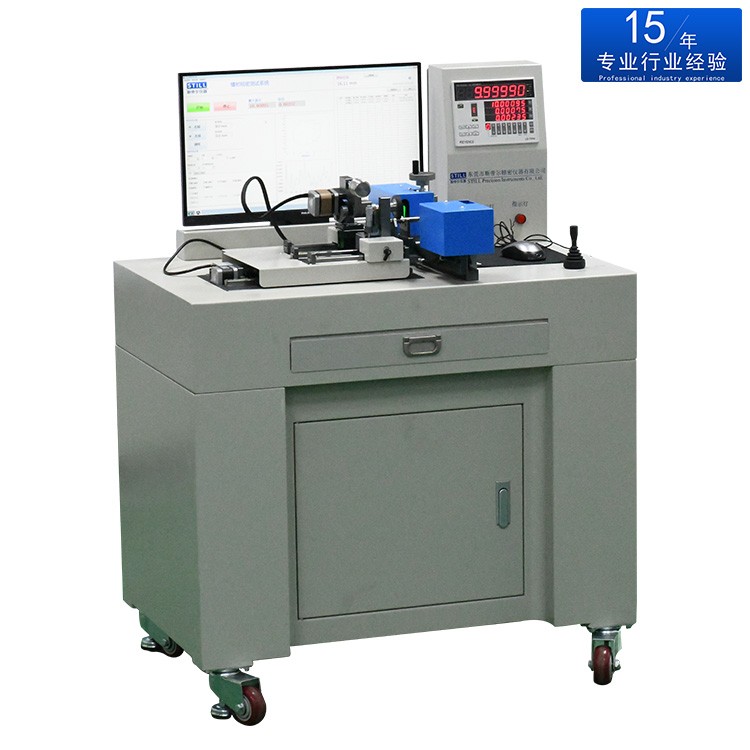

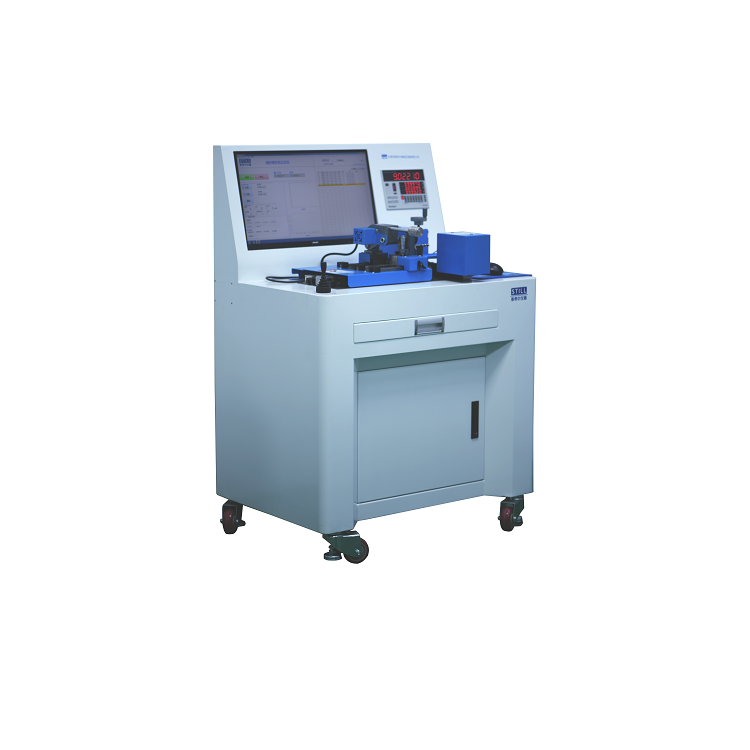

激光刀具測量?jī)x可測量外徑0.3-30mm，裝夾方式陶瓷V型結構， 裝夾柄徑3-30mm， 測量?jī)x直徑線性精度0.002mm，重復性0.0001mm，標定后直徑測量精度≤0.01mm。配備專業測量控制軟件，標準機型可實現半自動測量，可非標訂制全自動測量。可測量產品：標準銑刀，多刃刀具(6-16)，棒材，微鉆，高精度細長插芯軸等； 可測量項目 刀具：最大刃徑，最小刃徑，平均刃徑，刃徑跳動，同時可自動描繪出刃徑高度變化曲線圖；圓軸/棒材：最大直徑，最小徑，平均直徑，真圓度，同時可自動描繪出真圓度變化曲線圖, 如P17曲線圖，該曲線圖顯示刀刃最高點的變化量
Outer diameter measure range is 0.3-30mm, clamping mode ceramic v-shaped structure, clamping shank diameter 3-30mm, diameter measuring linear accuracy 0.0015mm, repeatability 0,00015mm, after calibration diameter measuring accuracy ≤0.0003mm. Configured with professional measurement control software, standard models can achieve semi-automatic measurement, also can be customized to be full-automatic measurement. Measurable product: Standard milling cutter, multiple-cutting-edge tool (6-16), bar, micro-drill, high precision slender mandrel, etc. Measurable item, cutter: max/min/average value of blade-edge diameter, beating value of blade-edge, meanwhile the curve of blade diameter height change can be drawn automatically; circular shaft/bar: max/min/average value of diameter, roundness, meanwhile the curve of roundness can be automatically drawn. For example, the P17 curve
該曲線圖顯示刀刃最高點的變化量，此高度為刀刃最高點處于鐳射光幕的位置高度，上圖可以看出四個刀刃直徑不在一個高度內，相差大約為8.8105-8.8055=0.005mm；從該曲線還可以看出看條刀刃的高低狀況
The curve shows the changes in the highest point of the blade, this is the highest point of the blade edge at the position of the laser light curtain. Above figure shows that the diameter of the four blades is not within one height, the difference is approximately 8.8105-8.8055=0.005mm. Through the curve, we can also see the low-high status of the blades.
激光刀具測量?jī)x一鍵測量棒材
圓棒測量，度變化量模擬圓度曲線圖，X,Y軸單位是μ，可以看到360度的圓度微觀變化
One-click measuring bar
Circular rod measurement, degree variation simulates roundness curves, axis units of X,Y are μ, this can show 360 degrees of roundness micro changes.
激光刀具測量?jī)x一鍵測量銑刀
轉動測量銑刀跳動，最大直徑，最小直徑，平均直徑；同時自動描繪出刀刃外徑的曲線圖，曲線局部放大，可以從曲線圖微觀分析刀刃各刃的高低狀況。
One-click measuring cutter
Measure run-out of milling cutter when rotation, max/min/average diameter; synchronously it automatically draws the curve of the outside diameter of the blade, the low-high status of each blade can be analyzed microscopically from the curve via local zoom.
激光刀具測量?jī)x測量產品
- 類型 : 刀具檢測儀
