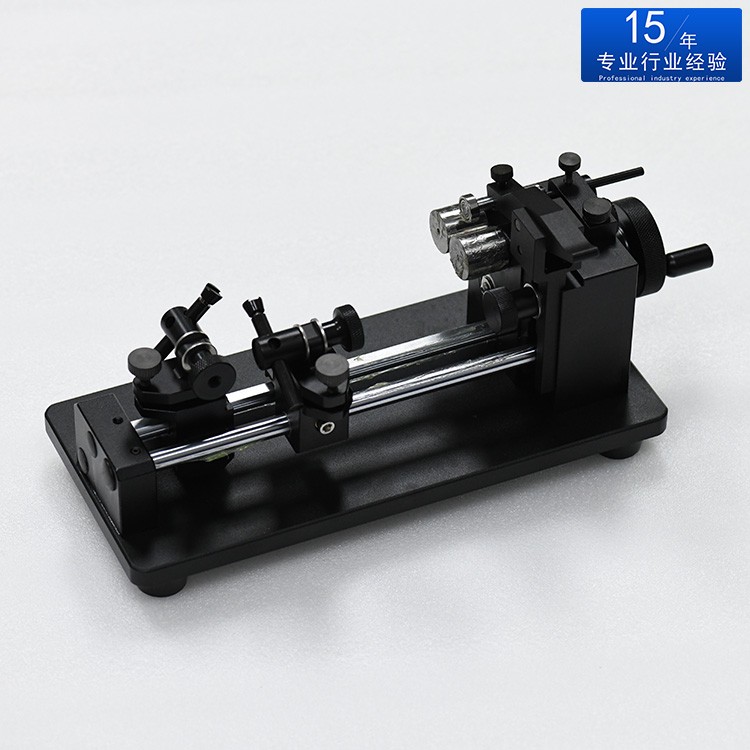

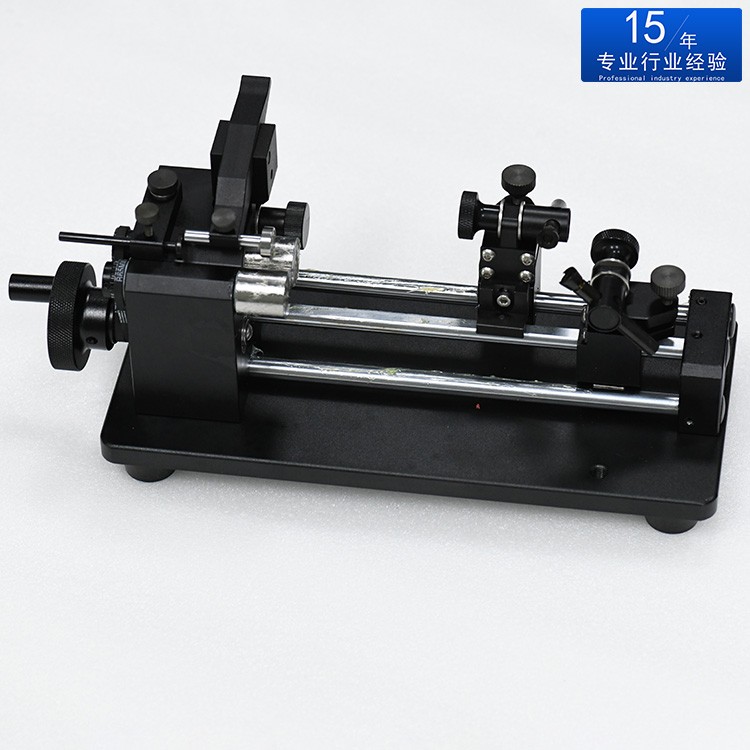

同心度儀
Concentricity meter
主要用途：
家用電器內部結構精密細長軸，醫療器械氣動電動芯軸.塑膠五金軸類配件同心度測量及通訊五金.儀表儀器，航空航天，五金機械，等內部結構軸類零部件同心度同軸度測量
適合批量全檢,單件抽檢，同心度儀平行轉輪精度為: ≤0.001mm，圓柱度≤0.001mm，綜合測量精度：≤0.002mm
主要評估形位公差元素有：
徑向外圓，軸向內孔，細長軸直線度（跳動），端面跳動，圓跳動，同心度測量
Concentricity Gauge
Application:
Precision slender axle of internal structure of household appliances, pneumatic electric mandrel of medical instruments, concentricity measurement of plastic hardware axle parts, communication hardware, instrument, aerospace, hardware machinery, and other internal structure axle parts concentricity measurement.
Suitable for batch full inspection and single sample inspection
The main evaluation elements of geometric tolerance are:
Parallel wheel accuracy≤0.001mm, cylindricity ≤0.0015mm, comprehensive measurement accuracy ≤0.002mm.
The main evaluation elements of geometric tolerance are:
Radial Outer Circle, Axial Inner Hole, Slender Axis Straightness (Running), End Surface Running, Circular Running, Concentricity Measurement
型號 Type | 測量范圍mm Measuring Range mm | ||
適用直徑 Applicable diameter | 適用長度 Applicable length | ≤精度 ≤Accuracy | |
CON1-102 | 3-35 | 102 | 0.002 |
CON4-102 | 1.5-35 | 102 | 0.002 |
CON2-102 | 10-60 | 102 | 0.003 |
CON3-102 | 20-102 | 102 | 0.003 |
機臺尺寸SIZE(CM):180*330*170
毛重/凈重:Gross/net weight(kg):3公斤
